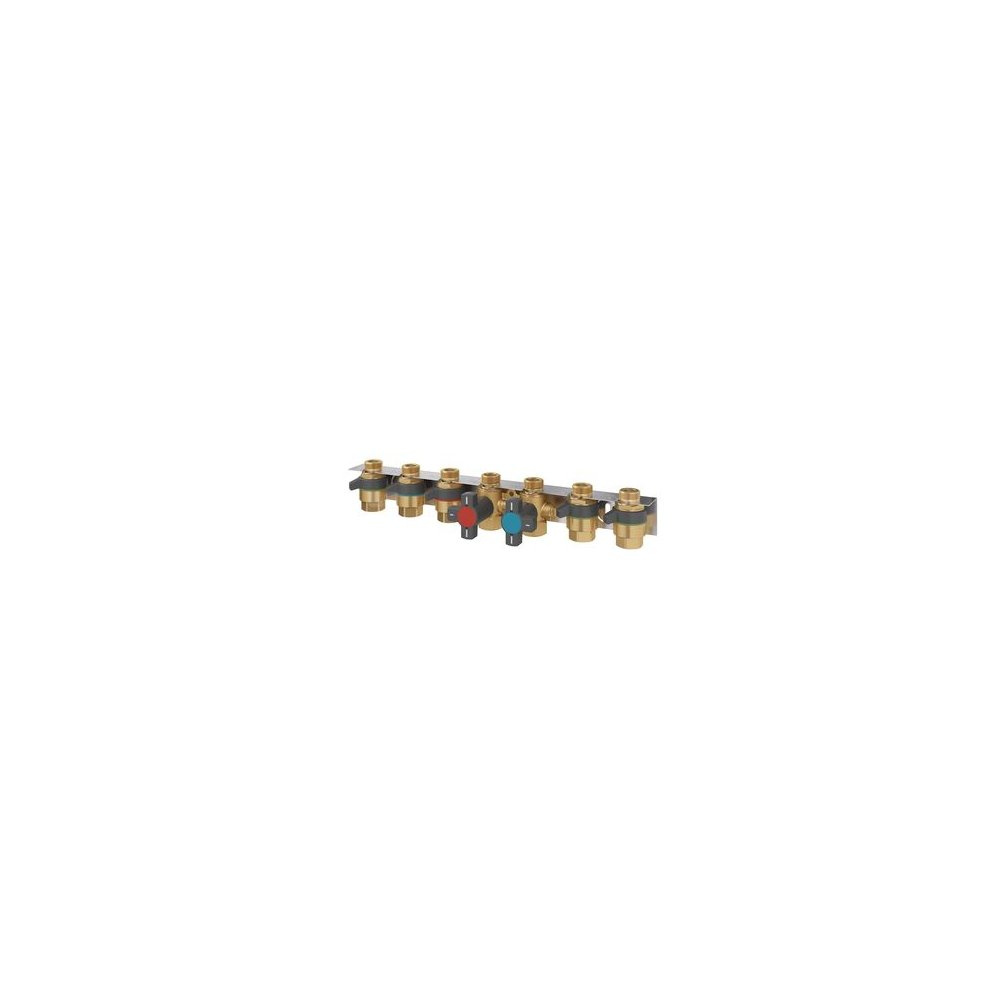

Connection and shutoff set for shutting off all connections of the Regudis W-HTE dwelling station. A flypass fitting offers a flushing function of the supply pipe in addition to the shutoff. It consists of seven ceramic disc valves and a Flypass fitting mounted in a bracket. The individual ceramic disc valves are identified on the heating side by red coloured rings in the supply and by blue coloured rings in the return. The lead-free ceramic disc valves on the potable water side are identified by green coloured rings. The Flypass fitting additionally enables a bypass to be opened between the heating supply and the heating return. This allows the heating circuit upstream in the flow direction to be flushed, even without the Regudis W-HTE dwelling station installed. Technical data: Nominal size: DN 15
By operating the handle of the ceramic valve discs, the flow is shut off by a ceramic disc inside the valve. The marking on the housing shows in which direction the flow is opened or closed.
Connection station: G ¾ ET
Connection heat network: Rp ¾ IT
Max. operating temperature: 90 °C
Max. operating pressure: 10 bar
