Regulator temperatury zasilania ogrzewania podłogowego - zestaw bez pompy, do węzła Regudis W-HTE

Flow temperature control module for surface heating systems.

For the extension of the Regudis W-HTE by a thermostatic flow temperature control for surface heating circuits.
Flow temperature setting: 20 °C - 50 °C

Suitable for on-site installation of the following pump types:
(Housing design G 1 130 mm)

Wilo Para 15
Wilo Yonos Para 15
Wilo Varios Pico-STG 15
Grundfos UPM3 Auto 15

When using heating circuit manifolds up to max. 11 heating circuits:
Grundfos Alpha2 15
Biral PrimAX 15

If an installation depth of 115 mm (flush-mounted cabinets) can be guaranteed:
Wilo Yonos Pico Plus 15

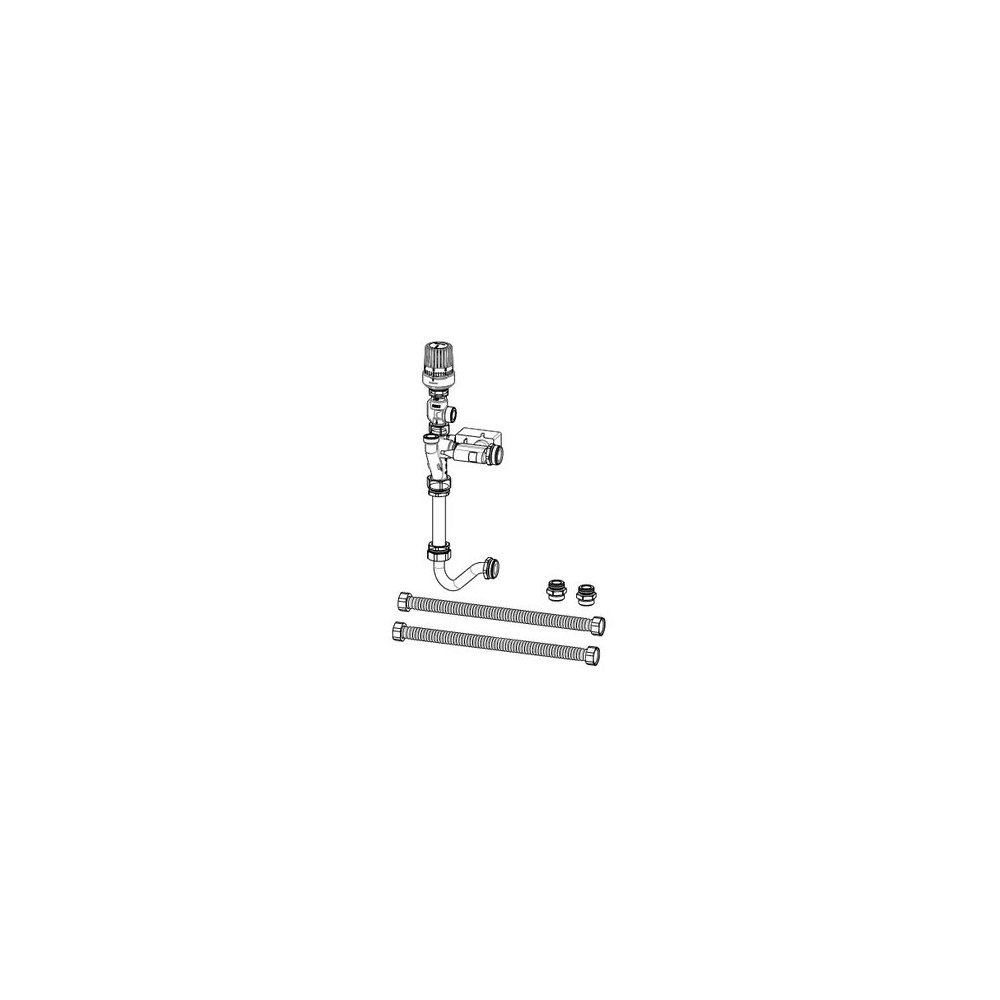

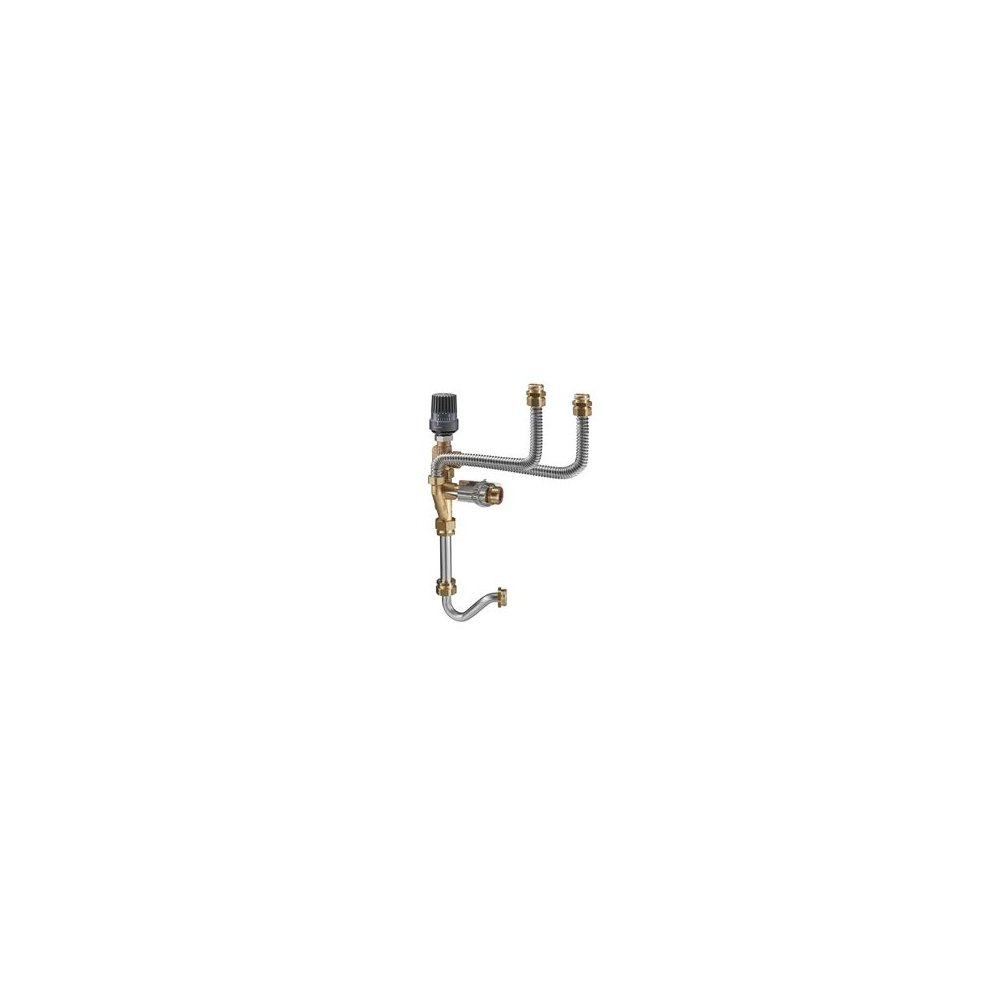

Consisting of:

• High-efficiency pump Grundfos UPM3 Auto 15-70
• Thermostatic temperature controller with contact sensor
• Connection set for connecting the Regudis W-HTE
• Safety temperature monitor for max. limitation of the heating circuit temperature
